Emergent Capabilities

Agents constructed with emergent: true receive the forge_tool meta-tool. When the agent encounters a task no existing capability covers, it composes a candidate implementation (or sandboxes generated code), runs the declared test cases against it, routes the result through an LLM-as-judge that scores code safety, test correctness, and determinism, and on approval registers the new tool at session tier so subsequent turns can call it by name. Three classes do the work: EmergentCapabilityEngine, EmergentJudge, and EmergentToolRegistry.

Emergent tooling requires a full runtime entry point. Use new AgentOS() or another constructor that initializes ToolOrchestrator with emergent support. The lightweight agent() helper accepts emergent: true for config compatibility but does not activate forge_tool on its own.

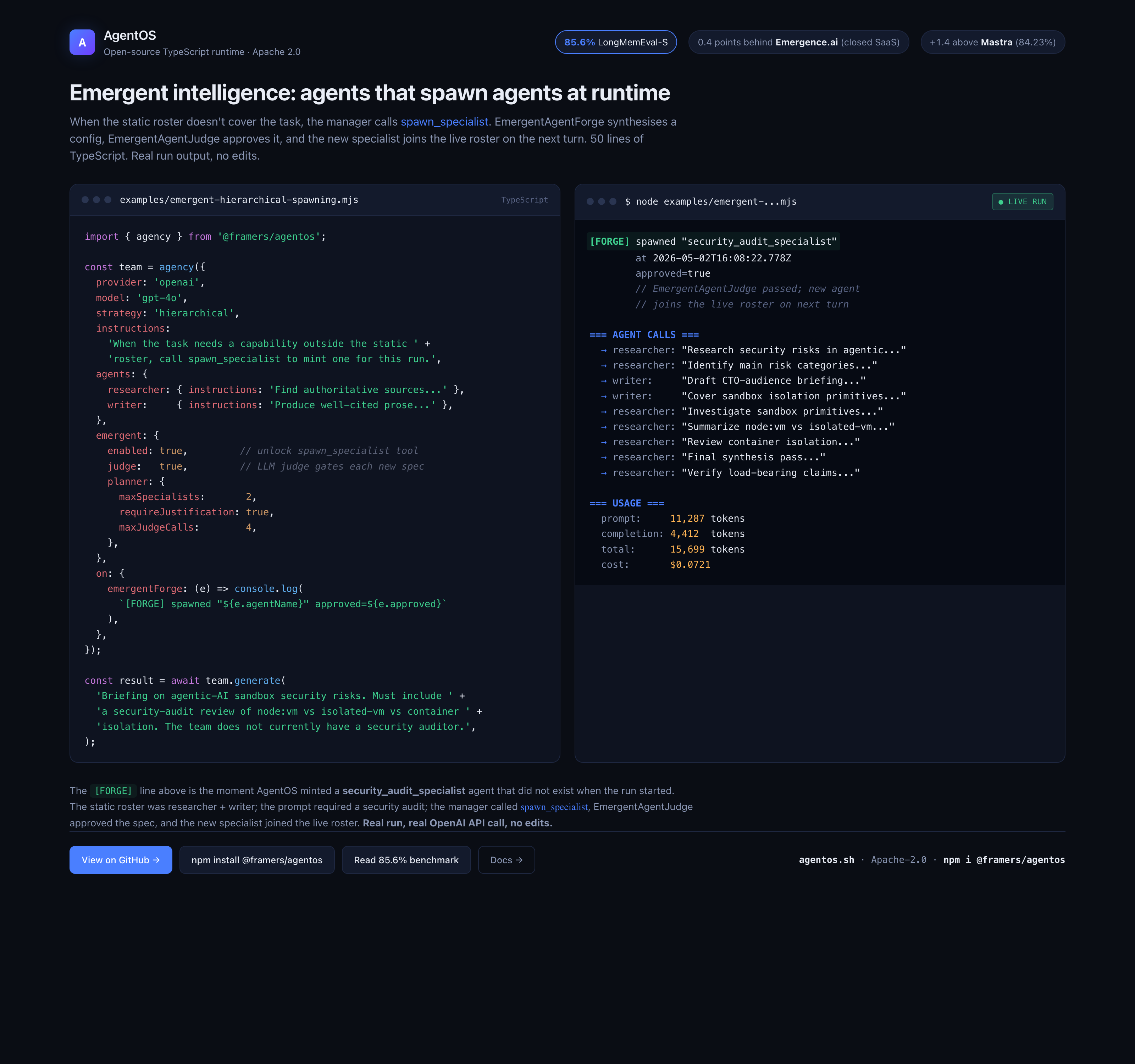

Live run: a manager spawns a specialist mid-task

The image above is captured from a real run of examples/emergent-hierarchical-spawning.mjs. The team starts with researcher + writer; the prompt asks for a security audit of sandbox isolation primitives, which neither static agent covers. The manager calls spawn_specialist, EmergentAgentJudge approves the synthesised config, and security_audit_specialist joins the live roster. The [FORGE] line in the right panel is the moment that happens.

Reproduce locally:

npm install @framers/agentos
export OPENAI_API_KEY="sk-..."
node examples/emergent-hierarchical-spawning.mjs

Quick Start

import { AgentOS } from '@framers/agentos';

const agentos = await AgentOS.create({
  emergent: true,
  // Compose mode (chaining existing tools) is always available once emergent is on.
  // Sandbox mode (agent-written code) stays off until you set
  // emergentConfig.allowSandboxTools. Read "Sandbox allowlists" below first:
  // sandboxed fetch is unrestricted, and reads cover the working directory.
});

// Every GMI on this runtime now has forge_tool in its tool list. Providers
// come from the environment keys (OPENAI_API_KEY and the others), not from
// a `provider` option.
// When an agent meets a task with no matching tool, it can create one.

How It Works

⊕ Click to expand

Two Creation Modes

Compose Mode -- Chain Existing Tools

Compose mode uses the ComposableToolBuilder to chain registered tools into a pipeline. No agent-written code runs: each step is a call to a registered tool, made through a step gate. In an AgentOS runtime the gate is ToolOrchestrator.processToolCall, so every step meets the disabled list, the permission check with the caller's capabilities, the approval for a tool with side effects, and argument validation, as a direct call does. A composed call made through a view of the orchestrator, as a launch_agency seat's calls are, runs each step through that view first, so the step also meets the seat's tool names and the approval gate the seat's calls are asked. A host that builds the engine itself passes a gate from createStepGate (see "Building the engine yourself" below); an engine without one forges code and refuses to compose (compose_needs_gate).

Which tools a step may name is one rule, checked when the composition is forged, at every load, before a promotion, and at every run:

The step tool declares	It is chained
hasSideEffects: false	freely
hasSideEffects: true	only when the host lists its name in emergentConfig.compose.sideEffectingTools
nothing	never: the host declares the flag first

launch_agency is never a step, whatever the host lists, since a team is launched from a turn: a workflow's step runs under the workflow's own timer, which would cut a team outside its launch's deadline and close path, and a composed tool would launch a team on every call of what the model sees as one tool. A composition or a workflow that names it is refused (step_not_chainable). A stored composition that names it, at any step, loads suspended with a reason of its own, step_never_chainable, which names no configuration key in the start-up line: no key, tool registration or reactivateTool call brings it back.

While a composition is forged, a step whose tool has side effects, or is itself a composition, is not executed. Each test case gives that step's output in stepOutputs, keyed by step name (dry_run_needs_output otherwise), and the judge sees the step listed as an effect that would have run, with its arguments. The other test steps run as the forging caller: forge_tool passes its own call context, and a direct engine.forge(request, { agentId, sessionId, caller }) passes it as caller, so a step that needs a capability the caller lacks fails its test. A direct forge without caller whose test step is refused a capability, by the permission manager or by the executor's own capability check, is refused with caller_context_required. A composition whose steps reach it again, at any depth, is refused (step_cycle): the steps are checked when the forge starts and again after the judge, and the cycle again just before the composition's executable is registered and once more after, so two forges that would close a cycle between them are never both registered. A forge refused before its executable is registered leaves the name with the tool that holds it; one refused after hands the name back to the tool it took it from (a host's own tool through the engine's onToolRestored, which ToolOrchestrator wires), so a composition forged over that tool meanwhile keeps running. At run time a composition that is already running further up the same call is refused there, before any of its steps run, and suspended (step_cycle); a chain nested deeper than eight is refused (nesting_too_deep) and suspends no composition, since a long chain is not a cycle.

At run time every step is checked again, since a tool is replaced by name, and the gate runs the very instance it checked: a tool registered under the name between the check and the call is refused (step_replaced) and nothing runs. A composed tool declares side effects when any of its steps does or is itself a composition; each such step is asked for approval when it runs, not the composed call, and a step the composition reaches after its call's signal aborted (ToolExecutionContext.signal: its turn stopped, or the workflow step that runs it expired) is refused (step_aborted) without being asked. An approval is for one registration, its tool id in the action id: every call through processToolCall runs the instance its checks and approval were for, and a call whose name another registration took meanwhile is refused with nothing run (STEP_REPLACED for a composed or workflow step, and for a call that arrives with the instance its caller checked, as a launch_agency seat's call on the full runtime arrives with the one its team's approval gate approved; TOOL_REPLACED for any other direct call). A step that can no longer be chained (its tool was removed, or replaced by one that no longer declares its flag, or the chain reaches itself) suspends the composition as the library's suspension; it is checked again when a tool one of its steps names is registered by any path (registerTool, an extension pack's descriptor), and at every load. A suspension or a demotion the host set stays as it is: a run's refusal, or a promotion check, never writes the library's suspension over it, in this process or over a row another process restricted, and a suspended or demoted tool is not promoted. Over a row the host turned off with its own SQL (is_active = 0 beside an active state row whose mark is clear) the library's suspension is not written either: the host's disable is recorded as its demotion (legacy_inactive), as a load records it, so no re-check raises the flag again. A composition suspended because its step's tool changed between the check and the call is checked again at once, against the tool that now holds the name, and so is one suspended at run time, or by a promotion check, that fits the tools registered by the time its suspension is held. A run's or a promotion check's suspension takes its turn with the composition's admissions, so a re-check that a registration starts while the suspension is being written runs after it and reads it, and a step tool registered while the suspension still waits its turn is found by that suspension's own check. A nested composition's refusal of one of its own steps suspends that composition only: the enclosing composition's call fails with its error, and the inner code arrives as details.innerCode.

Example: Research-and-summarize pipeline

// The agent calls forge_tool with this request:
const forgeRequest = {
  name: 'research_and_summarize',
  description: 'Search the web for a topic and produce a concise summary',
  inputSchema: {
    type: 'object',
    properties: {
      topic: { type: 'string', description: 'The research topic' },
    },
    required: ['topic'],
  },
  outputSchema: {
    type: 'object',
    properties: {
      summary: { type: 'string' },
      sources: { type: 'array', items: { type: 'string' } },
    },
  },
  implementation: {
    mode: 'compose',
    steps: [
      {
        name: 'search',
        tool: 'web_search',
        inputMapping: { q: '$input.topic' },
      },
      {
        name: 'summarize',
        tool: 'generate_text',
        inputMapping: {
          prompt: 'Summarize these search results about "$input.topic":\n$prev.output',
        },
      },
    ],
  },
  testCases: [
    { input: { topic: 'agent orchestration frameworks' } },
  ],
};
// This forges with no configuration when both step tools declare
// hasSideEffects: false. A step tool that declares true needs listing in
// compose.sideEffectingTools and its output in each test case's stepOutputs.

Reference expression syntax for inputMapping:

Expression	Resolves to
$input	The original input to the composed tool
$input.fieldName	A specific field from the input
$prev	Output of the immediately preceding step
$prev.output	A field from the preceding step's output
$steps.searchStep	Output of a named step
Any other value	Used as a literal

Example: Multi-step data pipeline

{
  "name": "fetch_analyze_report",
  "description": "Fetch API data, analyze trends, generate a report",
  "inputSchema": {
    "type": "object",
    "properties": {
      "endpoint": { "type": "string" },
      "timeRange": { "type": "string" }
    },
    "required": ["endpoint"]
  },
  "implementation": {
    "mode": "compose",
    "steps": [
      {
        "name": "fetch",
        "tool": "http_request",
        "inputMapping": { "url": "$input.endpoint", "method": "GET" }
      },
      {
        "name": "analyze",
        "tool": "generate_text",
        "inputMapping": {
          "prompt": "Analyze trends in this data for $input.timeRange:\n$steps.fetch.body"
        }
      },
      {
        "name": "format",
        "tool": "generate_text",
        "inputMapping": {
          "prompt": "Format this analysis as a markdown report:\n$prev.output"
        }
      }
    ]
  },
  "testCases": [
    {
      "input": { "endpoint": "https://api.example.com/metrics", "timeRange": "last 7 days" },
      "stepOutputs": { "fetch": { "body": "{\"visits\":[120,180,240]}" } }
    }
  ]
}

A request tool has side effects: when http_request declares hasSideEffects: true, this composition forges only when the host lists http_request in compose.sideEffectingTools, and the test case gives the fetch step's output instead of calling the endpoint.

Sandbox Mode -- Write Novel Code

Sandbox mode runs agent-written JavaScript on the forge's executor. The default executor is an in-process node:vm context, and Node's documentation says of that module: "The node:vm module is not a security mechanism. Do not use it to run untrusted code." The forge-specific SandboxedToolForge layers the function execute(input) contract and the granted functions on top of CodeSandbox, which sets codeGeneration: { strings: false, wasm: false }, freezes the console and sets process, globalThis and require to undefined in the context. A scope on a granted function (a domain list, a read root) is a guardrail for code that acts through that function. Wall-clock timeouts are enforced, but a host call the code started keeps running after its timeout; memory is not limited (node:vm shares the host heap, and sandboxMemoryMB is reported, not enforced). QuickJSExecutor runs each call in a QuickJS WebAssembly instance of its own and holds it to sandboxMemoryMB (see Executors).

Example: CSV parser

{
  "name": "parse_csv",
  "description": "Parse CSV text into structured rows with headers",
  "inputSchema": {
    "type": "object",
    "properties": {
      "csv": { "type": "string", "description": "Raw CSV text" },
      "delimiter": { "type": "string", "default": "," }
    },
    "required": ["csv"]
  },
  "outputSchema": {
    "type": "object",
    "properties": {
      "headers": { "type": "array", "items": { "type": "string" } },
      "rows": { "type": "array", "items": { "type": "object" } }
    }
  },
  "implementation": {
    "mode": "sandbox",
    "code": "function execute(input) {\n  const delim = input.delimiter || ',';\n  const lines = input.csv.trim().split('\\n');\n  const headers = lines[0].split(delim).map(h => h.trim());\n  const rows = lines.slice(1).map(line => {\n    const values = line.split(delim);\n    return Object.fromEntries(headers.map((h, i) => [h, values[i]?.trim()]));\n  });\n  return { headers, rows };\n}",
    "allowlist": []
  },
  "testCases": [
    {
      "input": { "csv": "name,age\nAlice,30\nBob,25" },
      "expectedOutput": {
        "headers": ["name", "age"],
        "rows": [{ "name": "Alice", "age": "30" }, { "name": "Bob", "age": "25" }]
      }
    }
  ]
}

Example: Temperature converter

{
  "name": "convert_temperature",
  "description": "Convert between Celsius, Fahrenheit, and Kelvin",
  "inputSchema": {
    "type": "object",
    "properties": {
      "value": { "type": "number" },
      "from": { "type": "string", "enum": ["C", "F", "K"] },
      "to": { "type": "string", "enum": ["C", "F", "K"] }
    },
    "required": ["value", "from", "to"]
  },
  "outputSchema": {
    "type": "object",
    "properties": { "result": { "type": "number" } }
  },
  "implementation": {
    "mode": "sandbox",
    "code": "function execute(input) {\n  const { value, from, to } = input;\n  let celsius;\n  if (from === 'C') celsius = value;\n  else if (from === 'F') celsius = (value - 32) * 5 / 9;\n  else celsius = value - 273.15;\n  let result;\n  if (to === 'C') result = celsius;\n  else if (to === 'F') result = celsius * 9 / 5 + 32;\n  else result = celsius + 273.15;\n  return { result: Math.round(result * 100) / 100 };\n}",
    "allowlist": []
  },
  "testCases": [
    { "input": { "value": 100, "from": "C", "to": "F" }, "expectedOutput": { "result": 212 } },
    { "input": { "value": 32, "from": "F", "to": "C" }, "expectedOutput": { "result": 0 } },
    { "input": { "value": 0, "from": "C", "to": "K" }, "expectedOutput": { "result": 273.15 } }
  ]
}

Example: Sandbox with fetch allowlist

{
  "name": "check_http_status",
  "description": "Check if a URL is reachable and return its HTTP status code",
  "inputSchema": {
    "type": "object",
    "properties": { "url": { "type": "string" } },
    "required": ["url"]
  },
  "outputSchema": {
    "type": "object",
    "properties": {
      "status": { "type": "number" },
      "ok": { "type": "boolean" },
      "redirected": { "type": "boolean" }
    }
  },
  "implementation": {
    "mode": "sandbox",
    "code": "async function execute(input) {\n  const res = await fetch(input.url, { method: 'HEAD', redirect: 'follow' });\n  return { status: res.status, ok: res.ok, redirected: res.redirected };\n}",
    "allowlist": ["fetch"]
  },
  "testCases": [
    { "input": { "url": "https://httpstat.us/200" }, "expectedOutput": { "status": 200, "ok": true } }
  ]
}

Sandbox Safety

Blocked APIs

These are rejected at code validation time (before execution):

Blocked	Why
eval, Function	Arbitrary code execution escape
require, import()	Module system escape
process, child_process	System access
Every fs.write* name but fs.writeFile, every fs.unlink* name but fs.unlink; fs.appendFile, fs.truncate, fs.rm, fs.rmdir	Filesystem mutation. A ceiling's fs.write and fs.delete supply fs.writeFile and fs.unlink, and the validator accepts each only when the request names its capability

Allowed APIs (opt-in via allowlist)

API	What it grants
fetch	Without a ceiling: outbound HTTP/HTTPS; the injected function sends the caller's method, headers and body to the host and follows redirects; fetchDomainAllowlist checks the first URL's host when a host sets it, and the standard wiring does not set it. Under a ceiling: GET and HEAD to the ceiling's hosts, every redirect checked, the body capped; POST, PUT, PATCH and DELETE when the ceiling lists them, on QuickJSExecutor only (see Effects). A grant that holds fetch and fs.read together can send out what it reads.
fs.read (the function fs.readFile in code; a list may name either)	Read-only file access under the roots, after symlinks are resolved: fsReadRoots without a ceiling (the working directory by default), the ceiling's roots with one
fs.write (the function fs.writeFile(path, data))	Under a ceiling on QuickJSExecutor only: one file written under the ceiling's write roots, within its bounds (see Effects)
fs.delete (the function fs.unlink(path))	Under a ceiling on QuickJSExecutor only: one regular file removed under the ceiling's delete roots
crypto	randomUUID, createHash and createHmac from Node's crypto

Resource Limits

Resource	Default	Config key
Execution timeout	5,000 ms	sandboxTimeoutMs
Memory budget (the in-process executor observes a heap delta and does not preempt; QuickJSExecutor stops the guest at it, never below 16 MiB)	128 MB	sandboxMemoryMB
Session tools	10	maxSessionTools
Agent tools	50	maxAgentTools
Sandbox mode	off: a mode: 'sandbox' request is rejected and a stored code tool loads suspended (sandbox_tools_off) until it is enabled; compose mode needs no switch	allowSandboxTools
Side-effecting steps	none: a composition or a workflow chains a tool that declares side effects only when it is listed	compose.sideEffectingTools
Settling after a run ends	up to 1 s; what is still in flight is listed pending	fixed (CALL_SETTLE_MS)
Output, in-process executor	1 MB of UTF-8 on each of stdout (the result, console.log, console.info) and stderr (console.error, console.warn); a call that passes either fails	fixed
Output, QuickJSExecutor	1 MB of UTF-8 for the result after JSON; console output is discarded	fixed
Response bodies, QuickJSExecutor	the memory budget, across all of a call's fetches	sandboxMemoryMB
Data handed to the host, QuickJSExecutor	the memory budget, across all of a call's arguments to host functions, at two bytes a character	sandboxMemoryMB
A thrown value's text, QuickJSExecutor	16,384 characters; a longer one is cut in the guest	fixed
Open hashes, QuickJSExecutor	64 per call	fixed

Executors

The forge validates the source, pre-parses it and builds the functions the grant allows; an executor runs the code and calls execute(input) or run(input). The library ships two:

	InProcessExecutor (the default)	QuickJSExecutor
Where forged code runs	a node:vm context in the host's process, through CodeSandbox	QuickJS compiled to WebAssembly: a new instance for each call, on the host's thread
isolates	false: the context is handed the host's own constructors	true: the guest's heap is the call's own WebAssembly memory, and only data crosses
memoryMB	observed as a heap delta, not enforced	the guest's memory stops at it (never below 16 MiB, never above 2,048 MiB)
A guest that yields once, then loops	is not stopped	is stopped at its deadline
Installs	nothing	quickjs-emscripten-core and @jitl/quickjs-wasmfile-release-sync, both 0.32.0

npm install quickjs-emscripten-core@0.32.0 @jitl/quickjs-wasmfile-release-sync@0.32.0

import { QuickJSExecutor } from '@framers/agentos';

// Imports the two packages and compiles QuickJS once. Rejects with
// quickjs_unavailable when either package is missing or at another version.
const executor = await QuickJSExecutor.create();

const emergentConfig = {
  allowSandboxTools: true,
  executor, // the forge the engine builds runs forged code here
};

A host that builds its own forge passes the executor there instead (new SandboxedToolForge({ executor })); a sandboxForge passed beside a different executor fails construction with executor_conflict. An executor made with new QuickJSExecutor() loads on first use: the engine awaits an executor's optional ready() before a forge's test cases, so a forge on an executor that cannot load is refused with the quickjs_unavailable message before any test or review, and a call on one fails with the same message. A host that bundles the library keeps it and the two packages external: the executor reads the variant's .wasm file from node_modules.

On QuickJSExecutor:

• What crosses. Each granted function reaches the guest as a host function that takes data (JSON values; bytes as latin1 strings) and returns data (JSON values; bytes as an ArrayBuffer copy) or a promise of data. A prelude evaluated before the forged code builds over them what the in-process context hands forged code: fetch (with a Response and Headers of its own), fs.readFile, crypto.randomUUID, createHash and createHmac (digests computed on the host), TextEncoder, TextDecoder, URL, URLSearchParams, structuredClone, atob, btoa, and a console that discards what it is given. Intl (DateTimeFormat, NumberFormat, Collator, PluralRules, RelativeTimeFormat, ListFormat, DisplayNames) and the locale methods of Date, Number, BigInt, String and Array format through the host's Intl. The names the in-process context sets to undefined are undefined, and eval and every Function constructor refuse source text, as codeGeneration: { strings: false } does in-process. fetch sends a string body as it is, bytes as bytes, URLSearchParams as form text (with the form content type when the request names none) and any other body as its string, as fetch reads a body. Under a ceiling the functions are the broker's, so its scope checks, refusals and effect records apply unchanged.
• Bounds. Beside memoryMB and the deadline, each call has: the result after JSON, 1 MB of UTF-8; the response bodies of its fetches together, memoryMB; 16 host calls (fetch, fs.readFile) in flight at once; 64 hashes open at once; the data its arguments to host functions hand the host together, memoryMB at two bytes a character (a string's length is read before it is copied, and any other argument crosses as its JSON, made in the guest); a thrown value's text, 16,384 characters; QuickJS's stack, 256 KiB, past which recursion ends as the guest's stack overflow. A timeoutMs that is not a positive finite number is refused before the guest starts. Without a ceiling the executor aborts the call's requests when the call ends; under one the broker does.
• Memory. Compiled with Emscripten, QuickJS's own memory limit counts only each allocation's overhead, so the bound is the WebAssembly memory's maximum. A budget below 16 MiB runs at 16 MiB, the build's initial memory, of which 5 MiB is the C stack; one above 2,048 MiB runs at 2,048 MiB, the build's maximum. A host value that does not fit what the guest has left ends the call memory_exceeded. A finished call's memory is freed when the host's garbage collector collects the instance the call dropped, so calls that run together hold up to the sum of their budgets.
• The host's thread. The guest runs on the thread that called it. A guest that computes without awaiting holds the host's event loop until it is stopped at its deadline, and one built-in operation (a large sort, a JSON operation on a large value) runs to its end before the stop takes effect, so keep sandboxTimeoutMs short where forged tools compute for long.
• The claim. isolates: true rests on the WebAssembly boundary (the guest reaches its own memory and the functions installed in it) and on the escape tests in tests/emergent/quickjs-executor.integration.spec.ts, which run on every change. quickjs-emscripten states that it has not been audited.

Another executor implements ForgedCodeExecutor:

import { SandboxedToolForge, type ForgedCodeExecutor } from '@framers/agentos';

const executor: ForgedCodeExecutor = {
  name: 'my-executor',
  isolates: true, // the author's claim: forged code reaches the host only through `globals`
  async run({ code, input, globals, timeoutMs, memoryMB, signal }) {
    // Run `code` in a realm of its own with `globals` installed (`fetch`, `fs`, `crypto`
    // when granted), call execute(input) or run(input), stop it at `timeoutMs` or when
    // `signal` aborts, and return the value it resolved to after a JSON round trip.
    return { status: 'ok', output: null, memoryUsedBytes: 0 };
  },
};

const sandboxForge = new SandboxedToolForge({ executor });

run resolves in every case, with { status: 'ok', output }, { status: 'error', error } (the whole message the forge returns), { status: 'timeout' } or { status: 'memory_exceeded' }, each carrying memoryUsedBytes; the forge reports a rejection as an execution error. Under a ceiling, globals holds the broker's functions and signal aborts when the call's handle ends; the broker refuses capability calls after that, whatever the executor does. The library does not check an executor's isolates: it is what the executor's author claims.

A host that builds the engine itself passes such a forge as sandboxForge (see Building the engine yourself); under a ceiling the engine checks it against the ceiling as it checks any host-built forge. When the runtime builds the engine, forged code runs on emergentConfig.executor, or on the in-process executor when it is absent.

A ceiling for code-forged tools

A host scopes what code-forged tools reach with emergentConfig.capabilities. A capability the ceiling leaves out is granted to no forged tool, and an empty domains or roots list grants nothing:

emergentConfig: {
  allowSandboxTools: true,
  capabilities: {
    fetch: { domains: ['api.example.com'] },     // '*' is every host
    'fs.read': { roots: ['/srv/agent-data'] },   // absolute paths
    crypto: {},
  },
},

The effect capabilities (fs.write, fs.delete, and fetch methods beyond GET and HEAD) are granted the same way, on an isolating executor, with every bound written out:

emergentConfig: {
  allowSandboxTools: true,
  executor: await QuickJSExecutor.create(),
  capabilities: {
    fetch: { domains: ['api.example.com'], methods: ['GET', 'POST'], maxRequestBytes: 65_536, approval: 'none' },
    'fs.write': {
      roots: ['/srv/agent-data/out'],
      mode: 'create-only',           // or 'create-or-replace'
      maxBytesPerFile: 1_048_576,
      maxBytesPerCall: 4_194_304,
      maxFilesPerCall: 20,
      timeoutMs: 10_000,
      approval: 'none',
    },
    'fs.delete': { roots: ['/srv/agent-data/out'], maxFilesPerCall: 5, timeoutMs: 10_000, approval: 'none' },
  },
  protectedPaths: ['/srv/app', '/srv/agent-data/state.sqlite'],
  effectPolicy: (effect) => (effect.target.endsWith('.lock') ? { deny: 'lock files stay' } : undefined),
},

Key	Default	What it does
fetch.domains	(required)	Hosts, matched exactly and case-insensitively; no wildcards, and an internationalised name is listed in its punycode form. '*' is every host
fetch.methods	['GET', 'HEAD']	The methods a tool may send: GET and HEAD, and POST, PUT, PATCH and DELETE, which change state and need an isolating executor, maxRequestBytes and approval
fetch.maxRequestBytes	(required beside a state-changing method)	A request body larger than this is refused before anything is sent; refused on a fetch without a state-changing method
fetch.approval	(required beside a state-changing method)	'none'; 'at-forge' and 'per-call' fail construction with approval_not_available in this release
fetch.maxResponseBytes	5 MB	A body larger than this is refused while it streams
fetch.maxRedirects	5	Redirects followed, each hop's host checked like the first
fetch.timeoutMs	30 s	One request, redirects and body included
'fs.read'.roots	(required)	Absolute directories, compared after symlinks are resolved
'fs.read'.maxBytesPerRead	1 MB	A file larger than this is refused while it streams
'fs.read'.timeoutMs	30 s	One read
'fs.write'.roots, mode, maxBytesPerFile, maxBytesPerCall, maxFilesPerCall, timeoutMs, approval	(all required)	Absolute directories; 'create-only' refuses an existing file, 'create-or-replace' replaces one whole; one file's bytes, one call's bytes and files; one write's time bound, from admission; 'none'
'fs.delete'.roots, maxFilesPerCall, timeoutMs, approval	(all required)	Absolute directories; the regular files one call may remove; one removal's time bound, from admission; 'none'

The engine validates the whole ceiling when it is built, the settings of a capability that an empty list removes included, and each error names its key: unknown_capability; invalid_domain (domains is '*' or a list of host names); root_not_absolute (roots is a list of absolute paths); method_not_allowed (methods is a list of 'GET', 'HEAD', 'POST', 'PUT', 'PATCH' and 'DELETE'); invalid_mode ('fs.write'.mode); invalid_approval and approval_not_available (an effect capability's approval); executor_does_not_isolate (an effect capability on an executor that does not declare isolates: true); protected_path (a write or delete root that holds or lies inside a protected path); invalid_bound (each bound is an integer, a time bound at most 2,147,483,647 ms, the longest delay Node's timers keep, and a byte bound or maxRedirects at most Number.MAX_SAFE_INTEGER); invalid_audit (audit.store is 'storage' or 'none', audit.content is 'digest' or 'full'); or audit_needs_storage (a ceiling records every capability call, so it needs a storage adapter unless audit.store is 'none'). A configuration read from JSON gets no type check, and these checks stand in for it.

The request. A forging agent names capabilities in implementation.allowlist; under a ceiling the list is a request. A name the ceiling does not grant refuses the forge before any test case runs, with capability_not_granted and the names the host grants. A tool gets the functions it asked for that the ceiling allows, with the ceiling's scopes, and cannot widen a scope.

The broker. Under a ceiling the functions injected into forged code come from one host-side broker, CapabilityBroker. Before each capability call it checks that the tool's call is still running, that the capability is in the tool's grant, and that the target fits the scope:

• fetch sends GET or HEAD with the caller's headers and nothing else from its options. It follows redirects itself, checks the host of every hop, drops authorization, proxy-authorization and cookie when a hop changes the origin, and reads the body as a stream refused past maxResponseBytes.
• fs.readFile checks the path against the roots, then its real path against the roots' real paths, and reads it as a stream refused past maxBytesPerRead, so no file is held whole before the limit applies.
• crypto is unscoped and synchronous.

On node:vm these checks are a guardrail: they hold for forged code that acts through its granted functions. Node's documentation says node:vm is not a security mechanism. On QuickJSExecutor forged code reaches the host only through the granted functions (see Executors).

A host-built forge. An engine given its own SandboxedToolForge under a ceiling reads the forge's effectiveOptions(). Options narrower than the ceiling narrow it; options wider fail construction with forge_wider_than_ceiling and the option's name. Read roots are compared after their symlinks are resolved, the forge's and the ceiling's alike, since the broker reads by real path: a forge root that is a link inside a ceiling root to a directory outside it is wider (a root that does not exist is compared as written, and reads nothing). new SandboxedToolForge() with no options allows every host and the working directory, which is wider than any ceiling that lists hosts or roots, so a host with a ceiling leaves sandboxForge out and the engine builds the forge.

Stored tools. The ceiling is checked again whenever a stored tool loads: a tool whose request the ceiling no longer covers loads suspended with capability_not_granted, and loads active again once a ceiling covers it. Under a ceiling, a tool whose stored request this release cannot read (a later release wrote it) loads suspended with request_unreadable, since a request derived from its source could narrow it silently.

Without a ceiling (the legacy path), forged tools take the three APIs as before, and the engine logs one line when it is built: what runs unscoped, and the ceiling that comes closest.

Effects: writes, deletes and state-changing requests

fs.write, fs.delete, and fetch with POST, PUT, PATCH or DELETE change the world outside the process, so they are granted only under a ceiling and only on an executor that declares isolates: true (executor_does_not_isolate otherwise; there is no fallback to node:vm). Without a ceiling a request naming fs.write or fs.delete is refused before any test runs (effects_need_ceiling), and a stored tool that names them loads suspended with the same reason.

What forged code calls. fs.writeFile(path, data) writes a string as UTF-8, or bytes (an ArrayBuffer or a typed array) as they are, and resolves to nothing; fs.unlink(path) removes one regular file. fetch(url, { method, headers, body }) sends a listed state-changing method with a string or byte body; a body on GET or HEAD is dropped. On QuickJSExecutor the data and the body cross out of the guest as their own string arguments, so the host reads their length before it copies them.

The order of checks. Every effect is checked in this order: the call is live; the capability is in the tool's grant; the target fits the scope; the bounds are left; effectPolicy; then the intent record. The scope of a write is the path, resolved as a read's is, against the roots; the real path of its parent against the roots' real paths (the parent has to exist: no directory is made); and the last component, which may exist only as a regular file, and under create-only not at all. A delete takes the same path checks, and its target must be a regular file. The bounds are the file's size against maxBytesPerFile, and the call's totals against maxBytesPerCall and maxFilesPerCall (call_quota_exceeded); an effect's share of the totals is reserved when it is checked, so writes started together cannot pass a bound between them, and a share is returned when effectPolicy refuses. The target a record keeps, and effectPolicy sees, is the path as written: the parent's real path and the last component.

A write. Under create-only the target is opened with an exclusive create and no signal, so the broker knows whether it made the file; under create-or-replace the data goes to a temporary file beside the target, .<name>.<call id>.tmp, opened the same way and then renamed over the target, so a reader never sees a half-written file and a link put at the target meanwhile is replaced rather than followed. The data is written in chunks, the call's end and the write's timeoutMs (counted from admission) checked between them. A cut write removes the file it made and is recorded timed_out or aborted; a file it could not remove is recorded with the code file_left. A removal or a rename, once started, runs to its end.

A state-changing request goes to a listed host with its body checked against maxRequestBytes (request_too_large) before anything is sent. A redirect answer is returned to the tool, not followed. The record's target is the method and the URL (POST https://api.example.com/items). A request cut after fetch() was called may have been acted on by the server, and Node's fetch does not say how far it got: its record keeps no outcome, which reads as unknown, with the code cut_in_flight, and the call's effect list shows unknown.

Protected roots. A write or delete root fails construction with protected_path when its real path holds or lies inside the library's own package directory, the node_modules directory the library was loaded from, the directory of the process's entry script, or a path in protectedPaths, or when it passes through a node_modules directory; a root that does not exist yet is checked when it first resolves. The check is partial: the library cannot find a host's own code and data in general, so a host lists its source, build output, data directories and a file database in protectedPaths.

effectPolicy. A host function called for every write, delete and state-changing request, forge tests included (effect.dryRun tells them apart), after the bounds and before the record. Returning { deny: reason } refuses the effect (policy_denied); returning nothing lets it go on; it cannot allow what the scope refused. A throw, or no answer within one second, refuses.

Forge tests change nothing. A forge's test cases run as dry runs: every check is made as in a real call, and every check that asks whether a path exists reads the run's own view first. A write lands in a temporary directory made for the run and removed after it, a delete marks its target gone for the run, a read sees what the run wrote or deleted, and a state-changing request is not sent: it takes the first unused answer in the test case's responses with its method and URL, and otherwise a 204 with the header x-agentos-forge-test: not-sent. These effects are listed with dryRun: true and recorded with the code dry_run. The judge sees each attempted effect's full target whatever audit.content says, and is told that dry-run effects show what the code attempted, not what a real call reaches.

Approval. This release builds approval: 'none' only. A ceiling that names 'at-forge' or 'per-call' fails construction with approval_not_available, so no grant is built that skips an approval its host asked for.

What the broker cannot stop. Node has no openat, so a process that swaps a parent directory for a link between the check and the open is outside these checks; and the exclusive create rests on the file system honouring O_EXCL, which Node's documentation says a network file system might not do.

The call deadline

Under a ceiling every run of a code-forged tool, a forge test or a call, has its own handle, and the handle ends when the run does: it returns, throws, or reaches sandboxTimeoutMs. From then on the broker refuses the run's capability calls (call_ended) and aborts the ones in flight: a fetch through its AbortSignal, a read by destroying its stream. The run's result waits up to one second for them to settle; one still unsettled is listed pending, and its record completes when it settles. Ending one run never touches another run's calls, of the same tool or another.

The bound holds while the host's event loop is responsive. node:vm bounds synchronous time only, so a tool that yields once and then spins in a loop is not stopped by the in-process executor; QuickJSExecutor stops it at the deadline. Without a ceiling there is no broker: a run that times out while a host call is in flight is reported failed while the call keeps running.

Effect records

Under a ceiling, a tool call's result carries effects, one entry per capability call, attached by AgentOS whatever the tool's code returns:

const result = await orchestrator.processToolCall(request);
result.effects;
// [{ kind: 'capability', capability: 'fetch', decision: 'allowed', decidedBy: 'ceiling',
//    outcome: 'ok', bytes: 512, target: '9f2c…', record: 'written', toolId, callId }]

outcome is ok, error, aborted, timed_out, refused, pending, or unknown (a state-changing request cut after it was sent, code cut_in_flight). A write, delete or state-changing request in a forge test carries dryRun: true and the code dry_run. A call refused before it ran says why in decidedBy (capability_not_granted, host_not_allowed, call_ended, audit_unavailable); one ended while it ran says why in code (host_not_allowed at a redirect, response_too_large, file_too_large). crypto has one entry per run, with uses, the number of calls. A composition's result lists its steps' entries: a step's own effects when it reports them, and { kind: 'step', step, tool, ran: true } for a step with side effects that reports none.

With audit.store: 'storage', the default under a ceiling, every capability call is also written to agentos_emergent_effects: an intent row before the call (tool id, call id, agent id, capability, target, decision, what decided it, a timestamp) and a terminal update after it (outcome, code, bytes, a timestamp). The target is what the broker checked and acted on: the URL of the first request it sent, as parsed (http://API.example.com/x is recorded as http://api.example.com/x), or the path it read, resolved; the tool's argument is read once, so the URL recorded is the URL sent. A call refused before its checks passed records the value the tool passed. target is a SHA-256 digest unless audit.content is 'full'. A failed intent write refuses the call (audit_unavailable), so a storage outage stops forged tools that have a ceiling. A failed terminal write leaves the row without an outcome, which reads as unknown, and the result's entry says record: 'intent_only'; after a crash, intent rows without an outcome are unknown, and nothing undoes an operation that ran. A refused call is one row. audit.retainDays deletes rows older than that many days from this table, once per engine before its first record, through an index on intent_at, so the delete's cost follows the rows it deletes rather than the size of the table; tool rows and state rows are never pruned. A host without a storage adapter sets audit.store: 'none': its results still carry effects, and no record is kept.

Without a ceiling no effect record is written and results carry no effects.

LLM-as-Judge Verification

Every forged tool undergoes review by the EmergentJudge. No tool activates without judge approval.

Review stage	When	What it checks
Creation review	First forge	Code safety, test correctness, schema compliance, determinism
Reuse validation	Each invocation	Output matches declared outputSchema; a tool forged with none (forge_tool does not ask for one) is checked against none, and a stored row with no output schema loads as {}, so a reload checks it against none too
Promotion panel	Tier upgrade request	Two independent reviewers: safety + correctness

If no LLM callback is configured for the judge, creation review fails closed — all forge requests are rejected. This is the safe default.

Tiered Promotion

Tools start at session tier in the EmergentToolRegistry and can be promoted as they prove reliability:

session ──(5 or more uses, confidence 0.8 or higher, panel approved)──→ agent ──(explicit promote() call; approvedBy optional)──→ shared

Tier	Scope	Lifetime	Promotion rule
Session	Current conversation only	Discarded on session end	Auto on creation + judge approval
Agent	Persisted for the creating agent	Survives restarts	5 or more uses, confidence 0.8 or higher, two-reviewer panel
Shared	All agents in the runtime	Permanent until demoted	An explicit promote() call; approvedBy is optional and recorded when passed (null otherwise); the runtime ships no human-in-the-loop gate for it

A promotion is a self-change: a use on a turn the learning layer refuses one (AGENTOS_LEARNING_FREEZE=1, mode off or frozen, a turn with no learner) is recorded and checks no promotion, and the next use on a turn that allows one does.

Stored tools: state, loading and suspension

Agent and shared tier tools live in agentos_emergent_tools. Their state lives beside them in agentos_emergent_tool_state: one row per tool with state (active, suspended or demoted), state_reason, set_by (who recorded the state: library or host), state_at and request_json, the capabilities the tool was forged with (catalogue names: fetch, fs.read, crypto; fs.readFile is accepted as an alias of fs.read). The state row is its own table because the tool row is rewritten whole on every persist, which would reset any column added to it. Every path that writes state writes is_active on the tool row to match, so a host that reads is_active with its own SQL sees the same values as before.

A host loads stored tools at start, after its own tools are registered:

const engine = orchestrator.getEmergentEngine();
const loaded = await engine.loadPersistedTools({ tiers: ['agent', 'shared'], agentId: 'gmi-42' });
// loaded.active, loaded.suspended, loaded.demoted, loaded.outcomes (one per row), loaded.failed

shared rows load for every caller; agent rows load for the agentId given and session rows for the sessionId given, and naming either tier without its selector throws selector_required, so one agent's private tools never reach another's executor. The agent identity is the persona: forge_tool records the forging caller's personaId as created_by_agent, agentId is that id, and an agent tool, loaded or forged, refuses a call from any other personaId before anything runs or a use is recorded (a GMI instance id is minted per session, so it cannot own a tool meant to outlive one). A row written by an earlier release holds the forging instance's id instead, which no persona can match: loaded by that id, such a tool is suspended with the reason legacy_owner (re-checked at every load, like the library's other suspensions) and a call to it is refused as an owner mismatch; forging the tool again makes it the persona's. The instance-id prefix gmi-instance- (GMI_INSTANCE_ID_PREFIX) is reserved for telling those rows apart: a tool whose owner begins with it is never promoted to the agent tier (checkPromotion leaves it at the session tier and promote refuses), so an agent-tier row whose owner carries the prefix is always one an earlier release wrote. A session tool is callable by name within its process until cleanupSession, as before: the execution context carries no session identifier. Every row goes through one path. A demoted row stays off. A row a host turned off with its own SQL (is_active = 0 and no suspension on record) is recorded demoted. A suspension the host set stays until the host clears it, whatever words its reason uses; one the library set is re-checked at every load and lifted when its cause is gone. A source that cannot be rebuilt is suspended with its reason: a redacted record (source_not_persisted, see persistSandboxSource), or a composition with no runnable steps, JSON of an unknown shape, a stored list naming a capability outside the catalogue, or a schema column that is not a JSON object (source_unreadable). A stored code tool loads suspended while allowSandboxTools is off (sandbox_tools_off), and a stored composition whose steps cannot be chained under the rule above (step_missing, step_not_chainable, side_effects_undeclared, compose_needs_gate) or that reaches itself (step_cycle) loads suspended; all of these are the library's and are checked again at every load. Under a ceiling, a stored code tool whose request the ceiling does not cover loads suspended with capability_not_granted, and one whose stored request this release cannot read with request_unreadable; both are the library's. Code tools load before compositions, and compositions suspended for a missing step are admitted again, pass after pass, until a pass activates none, so a stored composition can chain another stored after it at any depth. Admissions of one tool run one after another, whether they come from a load, a re-check after a registration or a host's sync. Nothing is narrowed to the part that could be read. Three stored forms of a code tool are read: the raw code, { "mode": "sandbox", "code": ..., "allowlist": [...] }, and the redacted record. For a raw-code row with no stored request, the request is inferred from the code with the same text scan validateCode applies and stored with inferred: true. A load also takes in a suspension or a demotion another process stored, and lets go of the executable; its own active write lands only while the row is still as it read it, so a restriction stored in between stays. Every state write writes the state row with its flag write marked pending (flag_synced = 0), sets is_active from the state row inside the flag's own statement, then clears the mark; a write the state row refuses changes nothing, flag included. On PostgreSQL under READ COMMITTED a flag statement reads the state row from its own snapshot, so one that another process's state write overtook can land after that write's own flag write with the older state: a state write whose row reads back another write's id after its flag write, and a whole-row write during which a state write landed, write the flag again from the state row as it reads then. A load that finds the mark still pending finishes the flag write itself before deciding anything about the row, so a crash or a failed write between the two never leaves the pair apart beyond the next load, and a lowered flag beside an active state row whose mark is clear is the host's own disable, which a load, a run's suspension or a promotion check records as the host's demotion. A host that lowers the flag with its own SQL during the few milliseconds of a library state write, or between a crash that cut a state write short and the next load, can have it overwritten by that write or by the load that finishes it; suspendTool and demoteTool are never overwritten. A whole-row write never raises a flag the host lowered. A load with nothing to write for a row reads its state row again before adopting the tool, so a restriction another process stored after the first read is taken in. A restriction this process holds that the row does not show is kept only while its own write is under way or settled after the load's read began, or when it is a host's restriction whose write failed (that one stays in force in the process until the host reactivates the tool, whatever the row reads: a load, a sync or a re-check of the tool writes nothing and keeps it off, even over a row that reads the library's own suspension); otherwise the row decides, whatever the processes' clocks say, so a library suspension whose write failed, or a tool held off as contended, is admitted from the row at the next load or re-check. Every state write reads its row back, after the upsert and after the flag write, and a state another process stored meanwhile is what the caller gets and holds; a tool another process removed while a load or a write had it in hand reads as demoted with the reason removed, is not registered, and gets no orphan state row (a new state row is inserted only while the tool row exists, and every read of a state row checks the tool row is still there). A load's own writes (a demotion for a lowered flag, a suspension for a source that does not read, an activation) land only while the row is as the load read it; a refused one admits the tool again from the row as it stands. A rebuilt code tool may reach what its stored request names, not what its text, its stored list or the list held in memory shows, and never more than a stored list names. Loading never rewrites a row, and a stored request is replaced only where the row holds none.

The host's controls are suspendTool(toolId, reason), demoteTool(toolId, reason) and reactivateTool(toolId); removeTool(toolId) deletes a stored tool's rows whether or not it is loaded in the process. Every registration, adoption, promotion, row write and removal of a tool is a change point in the process, and so is the moment a removal's row deletes, or a promotion's or an upsert's row write, land: a load notes where its read of the rows began and adopts a row only when the tool has not changed since and no removal or rewrite of its rows is still pending, so a row read before a removal or a promotion, or during one, is not put back, with or without storage; a refused adoption waits for the tool's queued writes and reads the row again. A promotion's and an upsert's row writes run in the tool's write queue, so a removal that comes after either deletes the row it wrote. Once the host has registered an executable, the admission checks that the registry still holds that very tool, and reads the registry again after every registration it makes to settle a change: the current tool's executable is registered when another took the id (the old name's executable taken out first when the name changed), and the stale executable is taken out when none did. A registration that fails during this, or a tool that keeps changing, leaves no executable under the name and is reported as a failed load; a forge reports it as a failed forge. A host's row write for a tool whose removal is still deleting runs after the deletes, in the tool's write queue. cleanupSession(sessionId) takes the session's tools out of the executor and out of both indexes, as removeTool does; a tool forged in the session and promoted out of it since stays registered, held and indexed under its agent. The session's rows that a load in the process admitted without activating (suspended or demoted), or that the host restricted in the process without loading them, are deleted too while they are still the session's, and the state the process held for them is let go before cleanupSession returns, so a step tool registered afterwards re-checks none of them and a re-check already under way does not register one; rows of the session the process neither admitted nor restricted are left alone. A forge whose state write finds no tool row keeps the tool in its process, held active, until the process ends: a row that never landed and a row another process removed inside the forge's own write window read the same, and the next load finds no row either way. A suspension or a demotion is an awaited write of the state row, and the orchestrator takes the tool's executable out of the executor; the executable also refuses a call to a tool that is not active. recordUse records nothing for a suspended or demoted tool and returns false. State writes for one tool run in call order; a reactivation overtaken by a suspension or demotion while its write runs yields to it, in memory and in the row. syncPersistedTool(tool) remains for hosts that hydrate one tool at a time; it reads the tool's stored row when there is one, writes the row first when there is none (so the tool's uses are recorded and the next load finds it), and returns the outcome. A call to a tool the registry no longer holds (removed, or its session cleaned up) is refused even when its executable is still registered; a call already running when its tool is removed returns its result, effects included, and records no use. The registry's upsert(tool) rewrites the tool's row from the object it is given and is not a way to load stored tools; a tool whose state the process does not hold keeps the is_active its row has.

Forge Observability

The forge pipeline ships with a five-utility observability layer under @framers/agentos/emergent so any consumer can see live forge health without re-implementing the instrumentation. Each utility is standalone, pure, and composes with whatever telemetry the host already has.

API surface

Utility	Kind	Purpose
wrapForgeTool	wrapper (ForgeToolMetaTool → ITool)	Normalizes messy LLM forge args, runs pre-judge shape check, captures every attempt to the caller's sink regardless of outcome. Takes an optional scope label and log event callback so consumers can group attempts (e.g., dept: 'medical') and render lifecycle events to stdout / pm2 / structured logs without the wrapper owning any console dependency.
validateForgeShape	pure function (ForgeShapeRequest → string[])	Catches the three failure modes that dominate cheap-tier rejections before the judge LLM runs: empty schema properties, fewer than 2 testCases, empty-input testCases. Every shape-check rejection saves one judge invocation plus the sandbox round-trip that would have followed it.
inferSchemaFromTestCases	pure function (in-place mutation)	Synthesizes inputSchema.properties / outputSchema.properties from concrete testCase values when the LLM forgot to declare them. Rescues the "examples without formalization" failure mode without relaxing schema discipline. Unions fields across every testCase so a single incomplete case does not narrow the inferred schema.
classifyForgeRejection	pure function (string → ForgeRejectionCategory)	Bins rejection-reason text into six categories: schema_extra_field, shape_check, syntax_error, parse_error, judge_correctness, other. Order matters: schema_extra_field wins over judge_correctness because it is the more specific and more actionable signal. A growing other bucket is the signal to read raw reasons and extend the pattern set.
ForgeStatsAggregator	class	Per-run rollup: attempts, approved, rejected, approvedConfidenceSum, uniqueNames, uniqueApproved, uniqueTerminalRejections, and the rejectionReasons histogram. uniqueApproved vs uniqueTerminalRejections is the real quality signal: unique-tool approval rate, not attempt-level approval rate. Shape pinned — extend by adding fields, never rename existing ones.

Composed wiring

import {
  EmergentCapabilityEngine, ForgeToolMetaTool,
  wrapForgeTool, ForgeStatsAggregator,
} from '@framers/agentos/emergent';

const engine = new EmergentCapabilityEngine({ /* ... */ });
const forgeTool = new ForgeToolMetaTool(engine);

const stats = new ForgeStatsAggregator();

const wrapped = wrapForgeTool({
  raw: forgeTool,
  agentId: 'agent-1',
  sessionId: 'session-1',
  scope: 'medical',  // optional; propagated onto every CapturedForge
  capture: record => stats.recordAttempt(
    record.approved, record.confidence, record.name, record.errorReason,
  ),
  log: event => {
    // event: { kind: 'start' | 'approved' | 'rejected' | 'error', toolName, ... }
    // Optional; omit for quiet mode.
  },
});

// Expose `wrapped` to the agent. After the run:
const snapshot = stats.snapshot();
// → { attempts, approved, rejected, uniqueApproved, uniqueTerminalRejections, rejectionReasons, ... }

Interpreting the histogram

• Dominant schema_extra_field bucket — the LLM declares strict output schemas then returns extra fields. Mitigation: tighten the forge-guidance prompt or fix the sandbox's schema discipline.
• Dominant shape_check bucket — the LLM keeps producing well-intentioned requests that the pre-judge validator rejects (empty properties, too few testCases). Usually fixable with a better system prompt that shows a worked forge example.
• Dominant judge_correctness bucket — tool code has real logic bugs the judge catches (division, threshold inversions, unbounded outputs). Investigate the specific forges.
• Non-zero syntax_error — LLM is emitting TypeScript syntax in a JavaScript sandbox, or single-line if/for without braces. Prompt fix.
• uniqueApproved / uniqueNames near 1.0 — retry loop recovers well. Near 0 — LLM gets stuck on the same name across retries.

Reference consumer: paracosm

Paracosm threads these utilities end-to-end through its SSE + cost telemetry surface. Every forge attempt shows up as a forge_attempt SSE event, is folded into the run's _cost.forgeStats payload on every subsequent event, lands in the run artifact's finalCost().forgeStats, and is aggregated across the last 100 runs at /retry-stats.forges. See apps/paracosm/src/runtime/emergent-setup.ts and cost-tracker.ts for the integration pattern.

End-to-End Example: Agent Conversation

User: I need to frequently check if JSON is valid and extract specific fields.

Agent: I don't have a JSON validation tool. Let me create one.
       [Calling forge_tool with mode: "sandbox"...]

       ✓ Created "validate_and_extract_json" — sandboxed tool that validates
         JSON and extracts fields by path. Passed safety review (score: 0.95).

User: Check if this is valid JSON and extract the "name" field:
      {"name": "AgentOS", "version": "0.1.96", "emergent": true}

Agent: [Calling validate_and_extract_json...]
       ✓ Valid JSON
       Extracted fields:
       - name: "AgentOS"

User: Now extract "version" and "emergent" from the same data.

Agent: [Calling validate_and_extract_json...]
       ✓ Valid JSON
       Extracted fields:
       - version: "0.1.96"
       - emergent: true

[After 5+ successful invocations, the tool auto-promotes to agent tier]

Programmatic Usage

Direct Engine Access

import { AgentOS } from '@framers/agentos';

const agentos = await AgentOS.create({
  emergent: true,
  emergentConfig: {
    maxSessionTools: 10,
    sandboxTimeoutMs: 5000,
    judgeModel: 'gpt-4o-mini',
    promotionJudgeModel: 'gpt-4o',
  },
});

// Access the engine directly (undefined when emergent is off)
const engine = agentos.getToolOrchestrator().getEmergentEngine?.();

// Forge a tool programmatically
const result = await engine.forge(
  {
    name: 'slugify',
    description: 'Convert a string to a URL-friendly slug',
    inputSchema: {
      type: 'object',
      properties: { text: { type: 'string' } },
      required: ['text'],
    },
    outputSchema: {
      type: 'object',
      properties: { slug: { type: 'string' } },
    },
    implementation: {
      mode: 'sandbox',
      code: `function execute(input) {
        const slug = input.text
          .toLowerCase()
          .replace(/[^a-z0-9]+/g, '-')
          .replace(/^-|-$/g, '');
        return { slug };
      }`,
      allowlist: [],
    },
    testCases: [
      { input: { text: 'Hello World!' }, expectedOutput: { slug: 'hello-world' } },
      { input: { text: '  Spaces & Symbols!! ' }, expectedOutput: { slug: 'spaces-symbols' } },
    ],
  },
  { agentId: 'agent-1', sessionId: 'session-1' },
);

console.log(result.success); // true
console.log(result.tool?.name); // 'slugify'
console.log(result.verdict?.approved); // true

// Clean up session tools when done
agentos.getToolOrchestrator().cleanupEmergentSession?.('session-1');

Building the engine yourself

A host that constructs EmergentCapabilityEngine without ToolOrchestrator gives composed tools a gate of its own. Built with resolve alone, a gate calls each step's tool with no permission check and no approval, as a direct call has in a host with neither manager; the chaining rule applies either way.

import {
  ComposableToolBuilder,
  DEFAULT_EMERGENT_CONFIG,
  EmergentCapabilityEngine,
  createStepGate,
} from '@framers/agentos';

const gate = createStepGate({
  resolve: (name) => myTools.get(name),   // the step's tool as registered now
  permissionManager,                        // optional: each step is checked with the caller's capabilities
  hitlManager,                              // optional, with hitl.enabled: a side-effecting step asks approval (a nested composition is not asked; its own steps are)
  hitl: { enabled: true },
});

const engine = new EmergentCapabilityEngine({
  config: { ...DEFAULT_EMERGENT_CONFIG, enabled: true, compose: { sideEffectingTools: ['send_email'] } },
  composableBuilder: new ComposableToolBuilder(gate),
  sandboxForge,
  judge,
  registry,
});

// A composition's test steps run as this caller.
await engine.forge(request, { agentId: 'agent-1', sessionId: 'session-1', caller: callContext });

// When the host registers a tool, compositions waiting on it are checked again.
await engine.onHostToolRegistered('send_email');

The gate can be passed to the builder, as here, or as stepGate in the engine's deps. A builder given a bare (name, args, context) callback keeps constructing, so existing construction does not throw, but it composes nothing.

A gate from createStepGate runs each step itself. A composition built over it and called through a view of a ToolOrchestrator (a launch_agency seat's) runs its steps outside that view, so the seat's tool names and approval gate are met by the composed call alone; only the runtime's own gate runs a step through the view the composed call came from.

A host that registers forged executables itself through onToolForged and onToolRemoved also passes onToolRestored(tool), which registers one of the host's tools again: a forge whose composition reaches itself only once its executable is registered takes that executable out and hands the name back to the tool it took it from. Without it the name is left empty in that case.

Listing and Inspecting Tools

const engine = agentos.getToolOrchestrator().getEmergentEngine?.();

// Get all tools for a session
const sessionTools = engine.getSessionTools('session-1');

// Get tools for an agent (includes promoted tools)
const agentTools = engine.getAgentTools('agent-1');

// Each tool carries its usage stats
const stats = sessionTools.find((tool) => tool.name === 'slugify')?.usageStats;
console.log(stats?.totalUses, stats?.successCount, stats?.avgExecutionTimeMs, stats?.confidenceScore);

Export and Reuse

Emergent tools can be exported as portable agentos.emergent-tool.v1 packages (YAML by default, or JSON) and imported into another agent (ToolPackage.ts).

import { readFile, writeFile } from 'node:fs/promises';
import {
  buildEmergentToolPackage,
  serializeEmergentToolPackage,
  parseEmergentToolPackage,
  materializeEmergentToolFromPackage,
} from '@framers/agentos';

// Export a tool: an EmergentTool the engine holds, here one of agent-1's tools
const tool = engine.getAgentTools('agent-1').find((t) => t.name === 'slugify');
if (!tool) throw new Error("agent-1 has no tool named 'slugify'");
const manifest = buildEmergentToolPackage(tool);
await writeFile('./slugify.emergent-tool.yaml', serializeEmergentToolPackage(manifest));

// Import into another agent
const parsed = parseEmergentToolPackage(await readFile('./slugify.emergent-tool.yaml', 'utf8'));
const imported = materializeEmergentToolFromPackage(parsed, { createdBy: 'agent-2' });
// Admit the tool to the other engine (deprecated in favour of loadPersistedTools for stored rows).
// With storage configured and no row for this tool id, the tool's row is written first; when a row
// exists, the stored row is admitted instead of the object passed in; without storage nothing is
// written. A suspended or demoted tool is not registered: outcome.state and outcome.reason say why.
const outcome = await otherEngine.syncPersistedTool(imported);

• compose tools are portable by default
• sandbox tools are portable only when source code is persisted (persistSandboxSource: true)
• Redacted sandbox exports are useful for audit and Git review but intentionally not importable

Configuration Reference

{
  emergent: true,
  emergentConfig: {
    // Tool count limits
    maxSessionTools: 10,           // Max tools per session
    maxAgentTools: 50,             // Max persisted per agent

    // Sandbox resource limits and telemetry
    sandboxTimeoutMs: 5000,        // VM execution timeout
    sandboxMemoryMB: 128,          // Nominal budget; node:vm reports heap delta only

    // Judge configuration
    judgeModel: 'gpt-4o-mini',    // Model for creation reviews
    promotionJudgeModel: 'gpt-4o', // Model for promotion panels

    // Promotion criteria
    promotionThreshold: {
      uses: 5,                     // Minimum invocations, successful or not
      confidence: 0.8,             // Minimum judge confidence score
    },

    // Sandbox mode
    allowSandboxTools: false,      // Sandbox mode (agent-written code) stays off until enabled;
                                   // stored code tools load suspended while it is off

    // Ceiling for code-forged tools (absent: the legacy path)
    capabilities: {
      fetch: { domains: ['api.example.com'] },
      'fs.read': { roots: ['/srv/agent-data'] },
      crypto: {},
    },

    // Paths no fs.write or fs.delete root may hold or lie inside (beside the library,
    // node_modules and the entry script's directory), and the host's last word on each effect
    protectedPaths: ['/srv/app'],
    effectPolicy: (effect) => undefined,  // { deny: reason } refuses

    // Effect records under a ceiling
    audit: {
      store: 'storage',   // 'none' without a storage adapter: no records kept
      content: 'digest',  // 'full' keeps URLs and paths as written
      retainDays: 90,     // unset: kept until deleted
    },

    // Compose mode
    compose: {
      sideEffectingTools: [],      // Tools with side effects a composition or workflow may chain
    },

    // Persistence
    persistSandboxSource: false,   // Store raw code at rest (enables export)

    // What runs forged code (absent: the in-process executor)
    executor: await QuickJSExecutor.create(),
  },
}

Without capabilities, a forge request names the APIs it needs in implementation.allowlist (fetch, fs.read or its alias fs.readFile, crypto) and gets them unscoped: the runtime builds the SandboxedToolForge with sandboxMemoryMB, sandboxTimeoutMs and executor only (the in-process executor when executor is absent), so fetchDomainAllowlist stays empty (a tool granted fetch reaches any host) and fsReadRoots stays at the process working directory (.env files included). With capabilities, the ceiling above scopes all three.

Safety Invariants

• Emergent tools cannot modify the guardrail pipeline
• Emergent tools get no memory or credential API. Without a ceiling, a tool granted fs.read reads any file under fsReadRoots, which defaults to the working directory, so a .env kept there is readable; under a ceiling it reads only under the ceiling's roots
• By default, sandbox code runs in an in-process node:vm context (process / globalThis / require set to undefined; codeGeneration: { strings: false, wasm: false } applies to the context's own intrinsics). The context is handed the host's own constructors (Object, Array, Promise and others) and functions, and through them forged code can reach the host's Function. node:vm is not a security mechanism (Node's documentation), and runaway memory is not preempted. QuickJSExecutor runs forged code in a WebAssembly instance of its own for each call and declares isolates: true (see Executors); another executor's isolates is its author's claim.
• Forge, promotion and removal decisions are written to the agentos_emergent_audit_log table when a storage adapter is configured; in memory the registry keeps the newest 1,000 entries. Under a ceiling, capability calls are recorded in agentos_emergent_effects (see Effect records)
• Shared-tier promotion needs an explicit promote() call; the approver is recorded only when the caller passes approvedBy; there is no built-in human-in-the-loop gate
• Writes, deletes and state-changing requests are granted only under a ceiling, only on an executor that declares isolates: true, within roots and bounds the host writes out, and never while a forge's tests run (see Effects)
• Raw sandbox source is redacted at rest by default
• If no LLM is configured, all forge requests are rejected (fail-closed)
• Under AGENTOS_LEARNING_FREEZE=1, forge_tool and the four self-improvement tools refuse every action that changes the agent (frozen), with a learning layer or without one, and a forged tool used then runs and is not promoted

Self-Improvement Tools

When selfImprovement.enabled is true, the engine registers four additional meta-tools that let agents modify their own behavior at runtime. All four are bounded by configurable limits to prevent runaway self-modification.

Tool	What it does
adapt_personality	Shift the calling GMI's HEXACO traits by bounded deltas with per-session budgets; recorded mutations decay in storage (the live trait does not)
manage_skills	Enable, disable, search, and list skills with allowlist-based permission gating
self_evaluate	LLM-as-judge response scoring (relevance, clarity, accuracy, helpfulness) with parameter adjustment
create_workflow	Compose multi-step tool pipelines at runtime with reference resolution ($input, $prev, $steps[N]); each step meets the chaining rule at create and at every run, and runs through processToolCall as the caller with the instance its check resolved; a step that expires, or whose workflow's own call stopped (the turn's stop a GMI's call carries), starts nothing afterwards, and a composed step passes either on to its own steps (ToolExecutionContext.signal)

Configuration:

{
  selfImprovement: {
    enabled: true,
    personality: { maxDeltaPerSession: 0.15, persistWithDecay: true, decayRate: 0.05 },
    skills: { allowlist: ['*'], requireApprovalForNewCategories: true },
    workflows: { maxSteps: 10, allowedTools: ['*'] },
    selfEval: { autoAdjust: true, adjustableParams: ['temperature', 'verbosity', 'personality'], maxEvaluationsPerSession: 10 },
  },
}

Refusals where a learning layer exists

On a host with a learning layer (the learning option, or a layer passed in gmiManagerConfig.learningLayer; Learning), each tool call carries the turn's learner and mode in sessionData.learning, and forge_tool, create_workflow (create), manage_skills (enable, disable), self_evaluate (adjust) and adapt_personality refuse before they act: frozen in mode frozen, off in mode off, no_learner on a turn with no learner. A refusal is a failed tool result with details: { status: 'rejected', reason }, and nothing changes. self_evaluate's evaluate on such a turn answers, stores no trace, applies no adjustment and sets selfChangeRefused. On every host, with a layer or without one, adapt_personality refuses honesty and emotionality (operator_only); with a layer it also refuses a delta above 0.02 (step_bound) and a fourth accepted call in a session (call_limit). AGENTOS_LEARNING_FREEZE=1 makes all five refuse with frozen, with a layer or without one.

With the tool orchestrator's approval gate on (toolOrchestratorConfig.hitl.enabled), each of these refusals, and adapt_personality's operator_only, is answered before the gate: no one is asked to approve a call that cannot act, and with no hitlManager the call names its refusal rather than the missing manager. The tools name such a refusal through ITool.refusalBeforeApproval, which wrapForgeTool keeps; a call the layer lets act is asked about as any tool with side effects is. With a layer, adapt_personality keeps a session's accepted calls and its per-trait budget per learner: the turn's organization, persona and user, as given, beside the session id, so two tenants or two users that share a session id count and spend apart. The counts and the per-trait budgets are kept in the tool's memory for the life of the process. wrapForgeTool records a forge it refuses before the gate in its capture, as it records every other attempt. The registered-tool helpers (processRequestWithRegisteredTools, resumeExternalToolRequestWithRegisteredTools) run a tool with the request's session, conversation and organization and no sessionData.learning, so a self-modification tool run through them reads as on a host with no layer; a GMI runs these tools in its own tool rounds and never pauses a turn for them, so a runtime turn hands none to the helpers.

See Self-Extension for how each tool is gated.

Skill Export

The SkillExporter converts runtime-forged tools into SKILL.md + CAPABILITY.yaml format, bridging emergent tools into the curated skills ecosystem and capability discovery.

import { exportToolAsSkillPack } from '@framers/agentos/emergent';
await exportToolAsSkillPack(forgedTool, './skills/slugify');

The tool's name names its folder, <outputDir>/<name>/. The forge holds a name to two rules: the rule for any file or folder name built from data (pathNameProblem: not empty; no slash, backslash or colon, none of ", *, <, >, ? and |, and no control character; not starting with a dot; not starting or ending with a space, or ending with a dot; at most 200 bytes in UTF-8), and an identifier: an ASCII letter, then ASCII letters, digits, underscores and hyphens. forge_tool refuses a name that breaks either rule before the engine runs, with a failed result whose details are { code: 'INVALID_TOOL_NAME', problem } (the error of a missing or empty name reads name is required and must be a string, its problem type or empty), and engine.forge, called directly, refuses it with the same message (ToolName.ts). writeSkillFile and exportToolAsSkillPack hold the name to the first rule again, so a tool the forge did not check, such as one loaded from a stored row or one a host builds itself, is checked too, and they write only when the tool's folder resolves inside outputDir. Otherwise they reject with an InvalidToolNameError (code and problem as above) and write nothing. outputDir is made when missing and used as it is, even when it is a link. Below it, the tool's folder is made and its files are written never through a link, and only into regular files (linkFreeWrite.ts): a symbolic link at the folder or at a file, a second name (a hard link) for a file, or anything but a regular file at a file's place rejects with a SkillExportRefusedError (code: 'SKILL_EXPORT_REFUSED', problem: 'link' or 'special'), and nothing is written.

Related

• Adaptive Prompt Intelligence -- the per-turn metaprompt loop that runs on state-mutating triggers, with the adapt_personality tool, PersonaDriftMechanism, and concrete cost numbers
• Adaptive vs. Emergent Intelligence -- how adaptive and emergent behavior differ in the AgentOS architecture
• Self-Improving Agents -- broader patterns for agents that improve over time
• Self-Extension -- forged tools, self-improvement tools and specialist spawning
• Guardrails -- safety mechanisms that constrain emergent behavior
• Agency API -- multi-agent coordination strategies
• API Reference: EmergentCapabilityEngine | EmergentJudge | EmergentToolRegistry | ForgeToolMetaTool | ComposableToolBuilder | CodeSandbox | AdaptPersonalityTool | ManageSkillsTool | SelfEvaluateTool | CreateWorkflowTool | exportToolAsSkill
